Rear Axle, Suspension & Steering

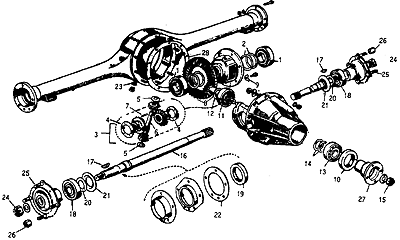

ALPINE REAR AXLE

PICT REF.#	DESCRIPTION	PART #	PRICE
.	DIFFERENTIAL, 3.889:1,S.II-V (A)	R1238650	N.L.A.
.	DIFFERENTIAL, 4.222:1,S.II-V (A)	R1238651	N.L.A.
1	BEARING, DIFF. BOX HOUSING	R9192057	39.20 ea
2	SHIM, .003"	R9071088	1.00
2	SHIM, .010"	R9071090	0.75ea
2	SHIM, .020"	R9071134	1.95ea
	ABUTMENT WASHER (C)	R1219400	4.70
3	WHEEL & PINION SET, FROM S. II AFTER B9108431	R5220524	126.80
4	THRUST WASHER	R5220887	5.25ea
5	THRUST WASHER, PINION	R1207649	2.75
6	CROSS PIN	R1200403	17.00ea
7	LOCK PIN FOR CROSS PIN	R9146061	3.70ea
8	RING AND PINION, 3.889:1	R5220639	215.00
8	RING AND PINION, 4.222:1	R5220640	N.L.A.
9	TAB WASHER	R1207927	1.35
10	OIL SEAL, PINION (B)	R5220439	11.80
10	OIL SEAL, PINION (C)	R5221256	13.55
11	INNER BEARING, PINION	R9192029	38.40
12	SHIM, .003" INNER BEARING	R9071147	0.95
12	SHIM, .005", INNER BEARING	R9071148	0.95ea
12	SHIM, .010", INNER BEARING	R9071149	1.95ea
12	SHIM, .020", INNER BEARING	R9071133	2.65ea
13	OUTER BEARING, PINION (B)	R9192009	N.L.A.
13	OUTER BEARING, PINION (C)	R9192134	37.60
14	SHIM, .003", OUTER BEARING	R9071049	0.90ea

NOTES:

(A) FROM SERIES II FROM B9108158 ON
(B) UP TO B395013608 (LATE S. V)
(C) FROM B395013609 (LATE S. V)

PICT. REF.#	DESCRIPTION	PART #	PRICE
14	SHIM, .005", OUTER BEARING	R9071050	0.90ea
14	SHIM, .010", OUTER BEARING	R9071051	0.90ea
14	SHIM, .020", OUTER BEARING	R9071132	1.30ea
15	NUT, NYLOC, SOLD EACH	R9034035	6.95ea
16	AXLE WITH SLEEVE, SERIES V, EACH	R5220957	89.50ea
17	KEY FOR AXLE, SOLD EACH	R9213027	2.65ea
18	AXLE BEARING, SERIES I-IV, 2 REQ.	R9188096	32.75ea
19	BEARING SEAL, SERIES I-IV, 2 REQ.	R9102145	10.70ea
18	AXLE BEARING, SERIES V, 2 REQ.	R1801176	38.50ea
--------	"O" RING FOR BEARING, S. V, 2 REQ.	R9107158	3.85ea
20	INNER SPLASH GUARD, S. V, 2 REQ.	R1235746	N.L.A.
21	OUTER SPLASH GUARD, S. V, 2 REQ.	R1235750	N.L.A.
22	GASKET, .006", GREY (S.I-IV USE 6 PER CAR, S.V USE 2 PER CAR)	R1229702	2.35ea
22	GASKET, .010", BROWN (S.V USE 2 PER CAR)	R1229698	2.35ea
23	GASKET, DRAIN PLUG	DG5	1.00ea
24	NUT FOR HUB, ALL SERIES, 2 REQ.	R9552123	N.L.A.
25	LUG BOLT, 4 PER WHEEL	R1214407	4.90ea
26	LUG NUT, 4 PER WHEEL	R1108015	4.60ea
27	PINION TO U-JOINT FLANGE	R1236702	67.85
28	GASKET, DIFFERENTIAL TO HOUSING	RP022341	3.95
.	WHEEL BALANCE WEIGHT, .5 OZ.	R1235513	0.80ea
.	WHEEL BALANCE WEIGHT, 1.0 OZ.	R1235514	0.80ea
.	WHEEL BALANCE WEIGHT, 1.5 OZ.	R1235515	0.90ea
.	WHEEL BALANCE WEIGHT, 2.0 OZ.	R1235516	0.95ea

ALPINE & TIGER REAR SUSPENSION

PICT. REF.#	DESCRIPTION	PART #	PRICE
1	LARGE RUBBER ECCENTRIC BUSHING FRONT SPRING EYE, ALPINE III-V, TIGER	RS50	19.95ea
1	LARGE URETHANE ECCENTRIC BUSHING FRONT SPRING EYE, ALPINE III-V, TIGER	RS50U	24.50ea
2	SMALL BUSHING FOR SPRING EYE. FRONT & REAR, ALPINE S.I (4/CAR) FRONT ONLY S.II (2/CAR)	RS21	18.55ea
3	SMALL BUSHING FOR REAR SPRING EYE & SPRING SHACKLE BUSHINGS, 4 PER CAR, ALPINE III-V & ALL TIGER.	RS51	12.90
4	SPRING WRAP RUBBER SET FOR 2 SPR.	RS53	16.20
5	TIGER PANHARD ROD, COMPLETE WITH BUSHINGS, BRACKET NOT INCLUDED.	RS55T	155.00
--------	BUSHING SET FOR PANHARD ROD	RS55B	29.95set
------	TRACTION BAR BUSHINGS, SET OF 8	FS68B	38.50

ALPINE IV-V, TIGER

ALPINE I-III

REF.#	DESCRIPTION	PART #	PRICE
1	OUTER WHEEL BEARING	FS50	9.50ea
2	INNER WHEEL BEARING	FS51	22.95ea
3	GREASE SEAL	FS52	13.50ea
4	LOWER BALL JOINT, PAIR	FS53	89.00pr
5	RUBBER SWAY BAR BUSHING,STOCK 3/4" BAR	FS54	4.60ea
5	RUBBER SWAY BAR BUSHING, HD 7/8" BAR	FS54L	4.60ea
6 & 12	UPPER & LOWER A-FRAME BUSHING SET, URETHANE, NOT RUBBER TO RESIST OIL. SETOF 8 WITH INNER & OUTER SLEEVES. URETHANE HARDNESS SIMILAR TO RUBBER	FS78	118.00set
7	SPECIAL WASHER FOR LOWER BUSHING	FS63	3.60ea
10	RUBBER INSULATOR	FS56	13.85ea
11	CAMBER ADJUSTING SHIM, .100" THICK	FS58	2.70ea
11	CAMBER ADJUSTING SHIM, .060" THICK	FS58M	2.70ea
13	SPECIAL WASHER FOR UPPER BUSH	FS67	3.55ea
15	UPPER BALL JOINT, PAIR	FS57	68.90pr
16	LUG BOLT, STOCK	R1214407	5.25ea
17	LUG NUT, STOCK FOR STEEL WHEELS	R1108015	4.95ea
18	RUBBER SNUBBER FOR UPPER A-ARM	FS76	12.50ea
19	RUBBER SNUBBER FOR LOWER A-ARM	FS77	12.50ea

REF.#	DESCRIPTION	PART #	PRICE
1	OUTER WHEEL BEARING	FS50	9.50ea
2	INNER WHEEL BEARING	FS51	22.95ea
3	FRONT HUB GREASE SEAL, S. I & II	FS22	15.80ea
3	S. III	FS52	13.50ea
4	SWIVEL PIN REPAIR KIT	FS33	96.80ea
5	SWAY BAR BUSH, 5/8" BAR ONLY (NOT 3/4")	FS54	5.95ea
5	SWAY BAR BUSH, 3/4" BAR ONLY (NOT 5/8")	FS54	5.95ea
6	LOWER FULCRUM PIN & KIT, PAIR	FS35	N.L.A.
7	UPPER FULCRUM PIN & KIT, PAIR	FS39	N.L.A.
8	RUBBER INSULATOR	FS56	13.85ea
9	UPPER BALL JOINT, PAIR	FS37	145.00pr
10	CAMBER ADJUSTING SHIM, .100" THICK	FS58	2.35ea
10	CAMBER ADJUSTING SHIM, .060" THICK	FS58M	2.35ea
11	LUG BOLT, STOCK	R1214407	5.25ea
12	LUG NUT, STOCK FOR STEEL WHEELS	R1108015	4.95ea
13	RUBBER SNUBBER FOR LOWER A-ARM	FS77	12.50ea
14	HD FRONT SWAY BAR, 7/8"	FS30F	105.00

STEERING COMPONENTS

REF. #	DESCRIPTION	PART #	PRICE
1	ALPINE TIE ROD ENDS, 1 LH & 1 RH THREAD	FS61A	38.50pr
2	ALPINE CENTER CROSS TUBE	FS61C	N.L.A.
	URETHANE BUSHINGS, FOR CROSS TUBE	FS61CBU	28.00pr
3	TIGER TIE ROD ENDS, PAIR	FS61T	39.90pr
4	TIGER RACK & PINION BELLOWS, NOT OEM	FS64T	12.95ea
6	ALPINE I-V IDLER ARM BUSHES, 2 REQ.	FS73A	10.95ea
6	ALPINE STEERING BOX BUSHING	FS73A	10.95ea
7	BALL BEARING SET FOR ALPINE STEERING BOX, 14 LARGE & 24 SMALL PER SET	FS74A	12.80set
8	RUBBER "O" RING SEAL FOR STEERING BOX OUTPUT SHAFT. FITS ALPINE I-V	FS75A	3.25

U-JOINTS

REF #	DESCRIPTION	PART #	PRICE
9	ALPINE DRIVESHAFT U-JOINT	UJ50A	21.50ea
9	TIGER DRIVESHAFT U-JOINT	UJ20T	16.85ea
10	TIGER STEERING U-JOINT (WITH ZERKS)	FS65T	22.50ea

FACTORY RECOMMENDED ALIGNMENT SPECIFICATIONS

APPLICATION	CASTOR	CAMBER	TOE-IN
ALPINE S. I-V & ALL TIGER	(POSITIVE) 3° 50’	(POSITIVE) 30’ + 15’	1/8" (3 mm)
