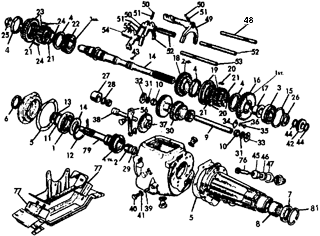

All-Synchro / Transmission

ALPINE IV from B94100001& ALL SERIES V


PICT.
REF.#		 DESCRIPTION PART # PRICE
1 INPUT SHAFT BEARING TR50 28.15
2 INPUT SHAFT ROLLER,
SET OF 23		 TR51
8.45
3 MAIN SHAFT BEARING TR52
42.75
4 SYNCHROMESH RING,
SOLD EACH		 TR53
29.60ea
5 GASKET SET TR54
7.50
6 FRONT SEAL TR55
9.90
7 REAR SEAL,
SERIES IV FR.B94100000		 TR46
12.95
7 REAR SEAL,
ALL SERIES V		 TR56
12.60
8 DRIVESHAFT REAR BUSHINGS, SERIES IV FROM B94100000 TR47
N.L.A.
8 DRIVESHAFT REAR BUSHING, ALL S. V TR57
17.75
9 LAYSHAFT FOR CLUSTER GEAR TR59
46.90
10 ROLLER SET FOR LAYSHAFT, SET OF 54 TR60
12.80set
11 WASHER, .058/.060" T9071158
2.85
11 WASHER, .054/.056" T9071159
2.90
12 RING T1224593
7.40
13 RING TP055507
1.95
14 SHIELD FOR FRONT BEARING T9071086
8.10
15 RETAINING RING TP055516
4.50
16 1ST GEAR T1224527
125.45
17 DISTANCE PIECE T1224545
49.90
18 2ND GEAR T1224530
146.25
19 SYNCHRO HUB AND SLEEVE 1ST-2ND, TO B395017308 T1228905
146.25
19 SYNCHRO HUB AND SLEEVE 1ST-2ND FROM B395017309 T5221245
153.95
20 SHIFTING PLATE (ORDER 3 PER CAR) T1224547
3.90ea
21 CIRCLIP T1224540
3.75
22 3RD GEAR T1224532
N.L.A.
23 3RD-4TH SYNCHRO HUB WITH REVERSE, UP TO B395017308 T1228906
N.L.A.
23 3RD-4TH SYNCHRO HUB WITH REVERSE FROM B395017309 T5221246
N.L.A.
24 SHIFTING PLATE
(ORDER 3 PER CAR)		 T1224544
3.35ea
25 NUT T1217970
7.75
26 NUT T9029209
7.60
  TABWASHER FOR OD CAM T1210201
4.80
28 CIRCLIP T9207036
1.48
29 COLLAR FOR ROLLER SET T1224578
8.65
30 LAYSHAFT CLUSTER,
S. IV FR, B94100000		 T1224510
234.80
30 LAYSHAFT CLUSTER,
S. V ALL		 T1224511
234.80
31 ABUTMENT RING TP027766
6.50
32 THRUST WASHER, .060-.058 T1224503
5.95
32 THRUST WASHER, .063-.061 T1224504
6.85
32 THRUST WASHER, .066-.064 T1224505
6.25
32 THRUST WASHER, .069-.067 T1224506
5.95
33 THRUST WASHER, REAR T5220868
6.45
PICT.
REF.#		 DESCRIPTION

PART #

 PRICE
34 LOCKING PLATE T1224509 4.30
35 SCREW T9604031 1.40
36 WASHER T9664163 0.25
37 REVERSE IDLER GEAR T1229538 87.75
38 SPINDLE, REVERSE IDLER T1224513 37.95
39 PIN T9146192 3.25
40 SCREW T5220691 2.80
41 WASHER T9078012 0.45
43 KEY, SPEEDO DRIVE WHEEL T9213001 2.80
44 CIRCLIP, TO B395017308 T9205053 2.75
44 CIRCLIP, FROM B395017309 T9205068 2.55
45 BEARING, SPEEDO PINION NON-O.D. TP108159 9.75
46 SEAL, SPEEDO DRIVE NON-OVERDRIVE T9102005 5.10
47 GASKET, SPEEDO GEAR (NON OD) T1219684 0.60
48 SHIFT ROD 1ST-2ND T1229302 24.50
49 SHIFT FORK, 1ST-2ND T1229303 81.20
50 BALL, SOLD EACH T9187008 2.75ea
51 DETENT SPRING, SOLD EACH TP682493 1.80ea
52 SHIFT FORK & ROD, 3rd, 4th IMPROVED T1239823 94.60
53 SHIFT ROD, REVERSE T1229305 22.75
54 SHIFT FORK, REVERSE T1229304 61.35
55 SHIM, .020" T9071002 2.25
56 RELAY LEVER WITH PIN T1238332 30.50
57 TOP COVER WITH BUSHING T1228258 N.L.A.
TOP COVER BUSHING ONLY T1216520 5.50
58 SHAFT WITH LEVER FROM 8395014026 T1239011 59.55
59 DAMPER PAD T1216453 4.75
60 SPRING FOR PAD T1208352 3.50
61 SELECTOR SAFETY CATCH T1228222 23.75
62 WASHER, PLAIN, SOLD EACH T9067056 0.35ea
63 WASHER, SPRING T9086011 5.65ea
64 PLUNGER, REVERSE STOP T1228371 11.60
65 SPRING FOR PLUNGER T1228720 5.60
66 RUBBER SLEEVE FOR SPRING T1228718 3.25
67 RETAINER T1228719 5.05
68 CLOSING PLATE T1239013 N.L.A.
69 GEARSHIFT LEVER T1239662 N.L.A.
71 SPRING T1205203 5.90
72 DISC T1203071 6.75
73 CAP T1228274 9.50
74 GROMMET FOR CAP T1216103 8.20
75 WASHER T9078033 0.60
76 PINION, NON OD, 13 TEETH T1207586 21.05
76 PINION, NON OD, 14 TEETH T1207587 21.05
77 RUBBER MOUNT, TRANSMISSION, 2 REQ. T1206582 N.L.A.
80 OIL SHIELD, TOP COVER T1240433 7.45
81 CIRCLIP FOR REAR SEAL & BUSHING T9204035 8.10

GEAR RATIOS
ALL-SYNCHRO GEAR RATIOS, ALPINE S.IV ALPINE S.V
REVERSE 3.569:1 3.320:1
FIRST 3.353:1 3.120:1
SECOND 2.141:1 1.990:
THIRD 1.392:1 1.295:1
FOURTH 1.000:1 1.000:1

MISCELLANEOUS SPECS.

LAYSHAFT END FLOAT 0.006/0.008"
FIRST GEAR END FLOAT 0.004/0.009"
TORQUE, MAINSHAFT NUTS 80 FT. LBS.
