Alpine Specs, Fuel Pumps & Clutches

FACTORY TIMING SPECIFICATIONS

ALPINE S. I-III	HIGH COMP.	5 —7° B.T.D.C.
ALPINE S. I-III	LOW COMP.	6 —10° B.T.D.C.
ALPINE S. IV		6 —10° B.T.D.C.
ALPINE S. V	HIGH COMP.	6 —10° B.T.D.C.

BECAUSE OF THE LOWER OCTANE GASOLINE AVAILABLE, WE RECOMMEND THAT YOU SET YOUR TIMING IN THE 3 -9" BTDC RANGE. SET TO THE LOWER SIDE OF THE RANGE IF NEEDED TO AVOID PINGING WHICH CAUSES PISTON DESTRUCTION AND CONSEQUENT HEAD DAMAGE. CONSIDER USING HIGH OCTANE UNLEADED WITH A LEAD SUBSTITUTE OR ADDITIVE TO PREVENT PINGING.

TORQUE & VALVE LASH SPECS

TORQUE SPECS	S. I 1494cc	S. II-IV 1592cc	S. V 1725cc
CYL. HEAD	48 FT/LB	48 FT/LB	48 FT/LB
ROD CAPS	20 FT/LB	24 FT/LB	24 FT/LB
MAIN BEARINGS	55 FT/LB	55 FT/LB	55 FT/LB
FLYWHEEL	40 FT/LB	40 FT/LB	40 FT/LB

VALVE LASH, HOT	INTAKE	EXHAUST
VALVE LASH, HOT	0.012	0.014

FUEL PUMPS & PARTS

APPLICATION	PUMP*	PUMP REPAIR KIT	GLASS BOWL
ALPINE S. I-V	FP50 39.50	FP51 22.50	FP52 8.50

CLUTCHES & PARTS

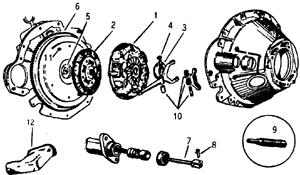

NOTE: PICTURE REFERENCE NUMBERS ARE IN PARENTHESIS

APPLICATION	SIZE	SPLINE	COVER (1)	DISC (2)	RELEASE BEARING (3)	PILOT BUSHING (5)	RING GEAR (6)
ALPINE SERIES I	8"	10 X 1"	NEW PP1 165.00	NEW CD3 88.75	TB2 28.75*	PB5 16.80	RN5 105.00
ALPINE SERIES II & III TO B9204717	8" Note A	10 X 1"	NEW PP2 call us	NEW CD3 88.75	TB2 28.75	PB5 16.80	RN5 105.00
ALPINE SERIES III & IV, S. III FROM B9204718	8" Note A	10 X 1"	NEW PP3 95.20	NEW CD3 88.75	TB2 28.75	PB5 16.80	RN5 105.00
S. IV FROM B9400001TO B94100001	8" Note A	10 X 1"	NEW PP3 95.20	NEW CD3 88.75	TB2 28.75	PB5 16.80	RN5 105.00
ALPINE SERIES IV LATE (FROM B94100001 ON)	7-1/2"	10 X 1"	NEW PP5 85.25	NEW CD4 82.50 (core chg. 20.00)	TB5 28.75	PB5 16.80	RN5 105.00
ALPINE SERIES V UP TO B395017308	7-1/2"	10 X 1"	NEW PP5 85.25	NEW CD4 82.50 (core chg. 20.00)	TB5 28.75	PB5 16.80	RN 105.00
ALPINE SERIES V LATE (FROM B395017309 ON)	7-1/2"	25 X 1-1/16"	NEW PP5 85.25	NEW CD5 64.00	TB5 28.75	PB5 16.80	RN5 105.00

* ORIGINAL CARBON TYPE THROW-OUT BEARING

NOTE A: SERIES II & III CLUTCH PRESSURE PLATES WILL ACCEPT AN 8-1/2 CLUTCH DISC INSTEAD OF 8". LET US KNOW IF YOU WOULD PREFER THE LARGER DISC. (PRICE MAY CHANGE)

SPLINE EXAMPLE: 10 X 1" MEANS THE TRANSMISSION INPUT SHAFT HAS 10 SPLINES AND A DIAMETER OF 1 INCH.
(ONE INCH = 2.54mm)

PICT. REF.#	DESCRIPTION	PART #	PRICE
(9)	CLUTCH ALIGNMENT SHAFT, 10 SPLINE ONLY, ALP.I-V TO B395017308*	AC53	9.75
(11)	DOWEL PIN TO ALIGN CLUTCH PRESSURE PLATE, ALPINE S.I-V	AC55	1.45 ea
(12)	RUBBER BOOT FOR BELLHOUSING	AC50	17.95

* HINT FOR A 25 SPLINE CLUTCH DISC, BUY A CHEAP WOODEN ALIGNMENT SHAFT AT AN AUTO PARTS STORE WHERE 1 OR BOTH OF THE DIAMETERS IS TOO SMALL. WRAP MASKING TAPE AROUND THE UNDERSIZED DIAMETERS UNTIL THEY ARE A SLIP FIT TO THE CLUTCH DISC AND PILOT BEARING.
