Alpine Engine
LOWER END

PICT
REF.#

DESCRIPTION

PART #

PRICE

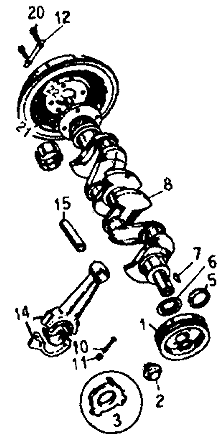

1 CRANKSHAFT BALANCER, ALL ALP., NEW A1228153 NLA
2 BOLT W/O JAW (REPLACEMENT) A1238081 6.75
3 TABWASHER FOR BOLT ABOVE A1202443 5.95
5 RUBBER DAMPER RING, S.V A1228028 7.75
6 OIL SLINGER, S.V AP103610 9.75
7 KEY FOR DAMPER,1-7/16" LONG A9213040 4.75
8 CRANKSHAFT, S. II-IV (1592cc) A5221011 N.L.A
9 OIL PUMP, SERIES V A5044739 59.75
10 ROD BOLT, 11/32", SERIES II-V, EACH A1238004 4.75 ea
11 ROD NUT, 11/32", SERIES II-V EACH A9034069 N.L.A>
11 ROD NUT, 5/16", S. I ONLY EACH A9571053 3.00 ea
12 LOCK PLATE FOR FLYWHEEL BOLTS, EA AP103620 3.75 ea
13 PIN, PINION TO SHAFT, S. I-IV EACH A9146020 1.75 ea

PICT
REF.#		 DESCRIPTION PART # PRICE
13 PIN, PINION TO SHAFT, S. V EACH A5043897 2.75 ea
14 CONNECTING ROD, SERIES II-IV, EACH A1206880 66.90 ea
14 CONNECTING ROD, S.V (1725), EACH A1229289 68.75 ea
15 WRIST PIN, .001 O/S, S. II-V, EACH A5110421 11.95 ea
15 WRIST PIN, .003 O/S, S. II-V, EACH A5110420 11.95 ea
16 OIL PICKUP ASSEMBLY, SERIES V A1238047 N.L.A.
17 OIL PIPE, PUMP TO BLOCK, S. V A1235118 NLA
18 NUT FOR OIL PIPE, SERIES V

A9156553

5.00
19 COMP. FITTING FOR PIPE, S. V A9157115 1.60
20 FLYWHEEL BOLT, EACH A9506073 NLA
21 CRANKSHAFT/FLYWHEEL DOWEL PIN A5220715 4.95 ea
22 PILOT BUSHING
(SEE CLUTCH PARTS)

ENGINE BEARINGS

DESCRIPTION APPLICATION STANDARD SIZE SIZE .010 SIZE .020 SIZE .030 SIZE .040 SIZE .050
MAIN BEARINGS ALPINE S. I-IV MB40
45.80 set		 MB41
45.80set		 MB42
45.80 set		 MB43
45.80 set		 MB44
45.80set		 MB45
45.80set
ALPINE SERIES V MB50
44.60 set		 MB51
44.60 set		 MB52
44.60 set		 MB53
44.60 set		 MB54
44.60 set
ROD BEARINGS
ALPINE SERIES I RB10
54.25 set		 RB11
54.25 set		 RB12
54.25 set		 RB13
54.25 set		 RB14
54.25 set
ALPINE S.II-IV RB40
58.75 set		 RB41
58.75 set		 RB42
58.75 set		 RB43
58.75 set		 RB44
58.75 set		 RB45
58.75 set
ALPINE SERIES V RB50
37.50 set		 RB51
37.50 set		 RB52
37.50 set		 RB53
37.50 set		 RB54
37.50 set

DESCRIPTION APPLICATION STANDARD SIZE SIZE .005 SIZE .025 SIZE .010 SIZE .030
THRUST WASHERS, FOR CRANKSHAFT ALPINE S. I-IV TW40 17.50 pr TW402 16.75 pr TW405 N.L.A. TW410 18.95 pr
ALPINE S. V TW50 12.50 pr   TW505 16.20 pr   TW53 16.50 pr

CAM BEARINGS ALPINE I-V, ALL CB50 22.80 set
PISTON PIN
BUSHING SET		 ALPINE SERIES I PP10 22.00 set
ALPINE S. II-V PP50 21.60 set

ENGINE BEARINGS & BUSHINGS SETS ARE SUPPLIED AS ENGINE SETS. THRUST WASHERS ARE SUPPLIED AS PAIRS.
