VALVE TRAIN PARTS
|
PICT. REF.#
|
DESCRIPTION
|
PART #
|
PRICE
|
|
1
|
CRANKSHAFT TIMING GEAR
|
A1228027
|
46.50
|
|
2
|
TIMING CHAIN
|
A9226040
|
18.75
|
|
3
|
BOLT, CAM SPROCKET
|
A5220686
|
1.25
|
|
4
|
WASHER, SPECIAL
|
AP055844
|
2.00
|
|
5
|
WASHER, RETAINING
|
A9096046
|
3.00 ea
|
|
6
|
CAMSHAFT TIMING GEAR
|
AP112147
|
81.00
|
|
7
|
RETAINING PLATE, STANDARD
|
AP118772
|
14.50
|
|
7
|
RETAINING PLATE, .004" O/S
|
AP107824
|
14.50
|
|
8
|
KEY, CAM SPROCKET
|
A9213008
|
2.00
|
|
9
|
CAMSHAFT, S. V, 11725cc
|
A1239455
|
NLA
|
|
9
|
CAMSHAFT, S. V HOLBY HI
PERF.
|
A1268721
|
NLA
|
|
10
|
END PLUG
|
A9809340
|
4.50
|
|
11
|
PLUG, ROCKER SHAFT ENDS
|
A9101807
|
0.90 ea
|
|
12
|
ROCKER SHAFT, FRONT
(WITH PLUG)
|
A5220124
|
35.00
|
|
13
|
ROCKER SHAFT, REAR
(WITH PLUG)
|
A5220125
|
35.00
|
|
14
|
ADAPTER, ROCKER OIL FEED
|
A1202204
|
13.50
|
|
15
|
COMPRESSION FITTING
|
A9157102
|
0.50 ea
|
|
16
|
NUT
|
A9156506
|
2.00
|
|
17
|
OIL PIPE, ROCKER FEED
|
A5220099
|
12.75
|
|
18
|
NUT, OIL PIPE
|
A9156051
|
1.75
|
|
19
|
UNION
|
A9151200
|
3.75
|
|
20
|
RETAINING CLIP
|
AP103912
|
1.50ea
|
|
21
|
SPRING
|
AP103638
|
3.00
ea
|
|
22
|
ROCKER, NUMBERS 1,3,5,7
|
AP118877
|
NLA
|
|
23
|
ROCKER, NUMBERS 2,4,6,8
|
AP118878
|
NLA
|
|
24
|
ROCKER ADJUSTER STUD
|
A1238404
|
4.50
|
|
25
|
LOCKNUT, ROCKER ADJ. STUD
|
A9520050
|
0.50
|
|
26
|
ROCKER STAND
|
AP106984
|
28.75ea
|
|
26
|
ROCKER STAND STUD
|
A9605263
|
3.00
|
|
27
|
SPACER FOR SPRING
|
A1202169
|
1.50
|
|
28
|
SPRING
|
AP103637
|
2.50
|
|
29
|
PUSH ROD, S. I-V
(SEE NOTE A)
|
AP118863
|
11.50ea
|
|
29
|
PUSH ROD, S. V
(SEE NOTE B)
|
A1238510
|
11.50ea
|
|
* ALPINE S.I-II WITH A ONE
PIECE METAL CHAIN TENSIONER BLADE, REPLACE WITH ITEM #'S 31 & 32.
(A) SERIES I-V TO SERIAL #
B395016811
(B) SERIES V FROM SERIAL # B395015821
|
|
|
VALVE SEATS
|
|
OVERSIZE
|
INTAKE
|
PRICE
|
|
.002 O/S
|
A5107319
|
8.00 ea
|
|
.005 O/S
|
A5107320
|
8.00 ea
|
|
.010 O/S
|
A5107321
|
8.00 ea
|
|
OVERSIZE
|
EXHAUST
|
PRICE
|
|
.002 O/S
|
A5114976
|
10.75 ea
|
|
.005 O/S
|
A5114977
|
8.75 ea
|
|
.010 O/S
|
A5114978
|
8.75 ea
|
|
VALVE LASH SETTINGS
(HOT)
|
|
INTAKE
|
(2,4,5,7)
|
0.012"
|
|
EXHAUST
|
(1,3,6,8)
|
0.014"
|
|
PICT. REF.#
|
DESCRIPTION
|
PART #
|
PRICE
|
| 30 |
VALVE LIFTER, STD. SIZE
|
A5112223
|
10.75ea
|
| 31,32 |
CHAIN TENSIONER BLADE*
& RUBBER
|
AP107710
|
14.25
|
| 33 |
CHAIN TENSIONER STUD
|
AP103732
|
8.75
|
| 34 |
OIL PIPE, TIMING
|
A1208782
|
13.50
|
| 35 |
RETAINER NUT FOR OIL PIPE
|
A9156501
|
1.75
|
| 36 |
COMP. FITTING FOR OIL PIPE
|
A9157100
|
0.50
|
| 37 |
SPRING, OIL FEED
|
A1208784
|
1.75
|
| 38 |
BALL, OIL FEED
|
A9187001
|
0.75
|
| 39 |
FITTING, OIL FEED
|
A1208783
|
3.50
|
| 40 |
PILLAR STUD
|
A1235909
|
13.75
|
|
|
APPLICATION NOTE
|
INLET VALVE
(47)
|
EXHAUST VALVE
(46)
|
INLET GUIDE
(45)
|
EXHAUST GUIDE
(44)
|
GUIDE RET. RING
(43)
|
SPRING RETAINER
(41)
|
VALVE KEEPER SET
(48)
|
|
ALPINE S.I-II (A)
|
IV2
15.50 ea |
EV4
15.50ea |
IN5
6.25ea |
EX5
6.25ea |
EX5R
0.25ea |
VS5R
NLA |
VS5K
10.00set |
|
ALPINE II-IV (B)
|
IV4
14.75ea |
EV4
15.50ea |
IN5
6.25 ea |
EX5
6.25ea |
EX5R
0.25ea |
VS5R
NLA |
VS5K
10.00set |
|
ALPINE S. V
|
IV5
14.75 ea |
EV5
19.75ea |
IN5
6.25ea |
EX5
6.25ea |
EX5R
0.25ea |
VS5R
NLA |
VS5K
10.00set |
NOTE: PICTURE REFERENCE NUMBERS
ARE IN PARENTHESES.
(A) SERIES I AND II UP TO
B9117424
(B) SERIES II FROM B9117425 THRU S.IV
|
|

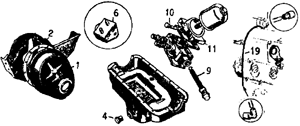

MISC. ENGINE
PARTS
|
PICT
REF.# |
DESCRIPTION
|
PART #
|
PRICE
|
| 1 |
TIMING COVER,
SERIES V |
A1235083 |
49.50 |
| 2 |
ENGINE SUPPORT LATE |
A1207042 |
45.75 |
| 3 |
STEEL OIL PAN,
1725cc S. V |
A1238000 |
N.L.A. |
| 4 |
OIL DRAIN PLUG BOLT |
A9801043 |
5.50 |
| 5 |
ALTERNATOR ADJUSTING STRAP |
A1235179 |
NLA. |
| |
CYL. HEAD STUD
(2 PER CAR) EA |
A9008052 |
2.50 |
| |
CYL, HEAD BOLT
(8 PER CAR) EA |
A9003202 |
5.95 |
| |
FREEZE PLUG SET, ALL
SERIES |
A5220785 |
19.25 |
| 6 |
MOTOR MOUNT, FRONT, EACH |
A1201437 |
19.75 |
| 9 |
SPRING FOR COOLER BALANCE
PIPE,
SERIES V |
A1218715 |
N.L.A. |
| 11 |
FILTER BASE WITH VALVE* |
A5058202 |
NLA |
|
12
|
WATER OUTLET PIPE,
S. III-V
|
A1214648
|
43.50
|
|
13
|
THERMOSTAT,
160 (SUMMER)
|
A1218672
|
9.75
|
|
13
|
THERMOSTAT,
180 (WINTER)
|
A1235962
|
9.75
|
| 14 |
THERMOSTAT HOUSING,
S.III-V |
A1214647 |
65.75
|
| 15 |
ALTERNATOR BRACKET, S.V |
A1238066 |
N.L.A. |
| 16 |
OIL FILLER CAP,
SERIES III-V |
A1207074 |
9.50 |
| 17 |
WATER JET FOR CYL. HD,
S.I-V |
A1200077 |
8.50 |
| 19 |
HOSE, PUSH-ON TYPE, FOR
VACUUM ADVANCE, NYLON WITH RUBBER ENDS |
AI63 |
4.90 |
| 20 |
TERMOSTAT HOUSING, S.I-II |
A1218587 |
98.50 |
(A) SERIES V TO B395012219
(B) SERIES V FROM B39501222
|
|
|
|
